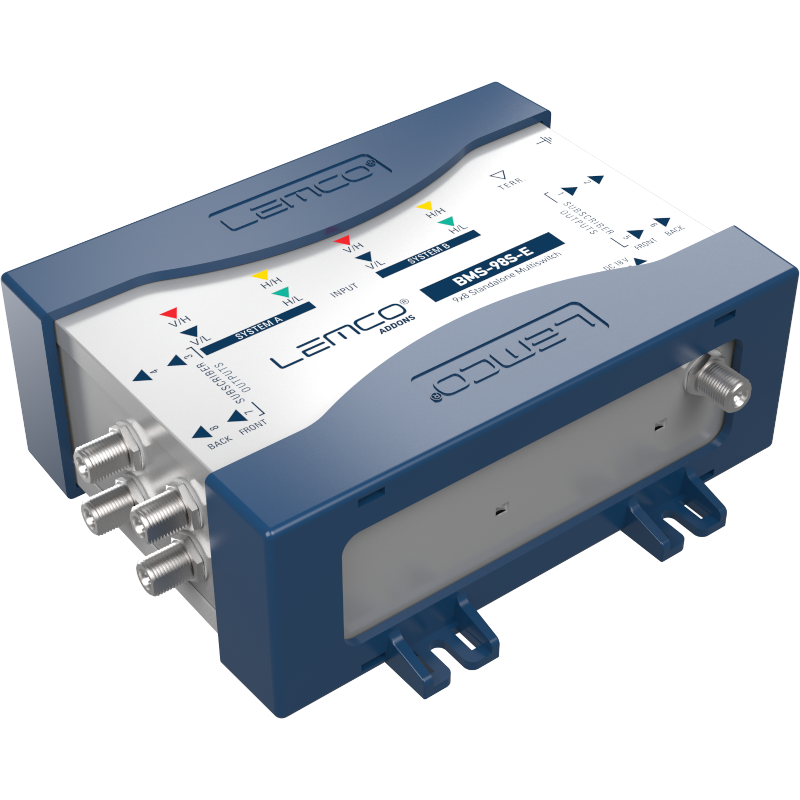

BMS-98S-E
Multiswitch 8+1 to 8
Features

  • Ultra-low insertion loss for maximum signal quality
  • High output isolation for interference-free performance
  • Wide dynamic input range for stable signal levels
  • Future-proof design for large hospitality & MDU networks
  • Metal housing with full EMC shielding for 24/7 reliability

A next-generation multiswitch series designed for superior signal distribution in modern TV installations. Combining advanced performance, compact design, and energy efficiency, it delivers reliable satellite and terrestrial signal transmission across multiple outputs. Ideal for both residential and commercial applications, it ensures quick installation, stable operation, and long-term durability.


Input
Trunk inputs (SAT+TER)8+1
Frequency Range TER47 - 862 MHz
Frequency Range SAT950 - 2150 MHz
ConnectorF- female
Impedanace75Ω
Switch commands13/18V, 13V/22kHz, 18V/22kHz
22KHz Tone22±4 KHz, 0.75±0.25 Vpp
LNB supportedQuad/Quattro
Output
No of Subscribers8
ConnectorF- female
Impedance75Ω
Insertion loss
TER22dB (Passive)
SAT8dB
Isolation
TER to SAT30dB
SAT to TER30dB
Cross polarization H/V30dB
Out-to-Out TER26dB
Out-to-Out SAT30dB
Return loss
Input TER10dB
Input SAT10dB
Output TER10dB
Output SAT10dB
Power supply
Input voltage/frequencyPowered by receiver
Power consumption40mA
General
Operating temperature0 °C to 55 °C
Storage temperature-10 °C to +70 °C
HumidityUp to 90%
Dimensions145 × 175 × 60 mm
Weight0.620 Kg
