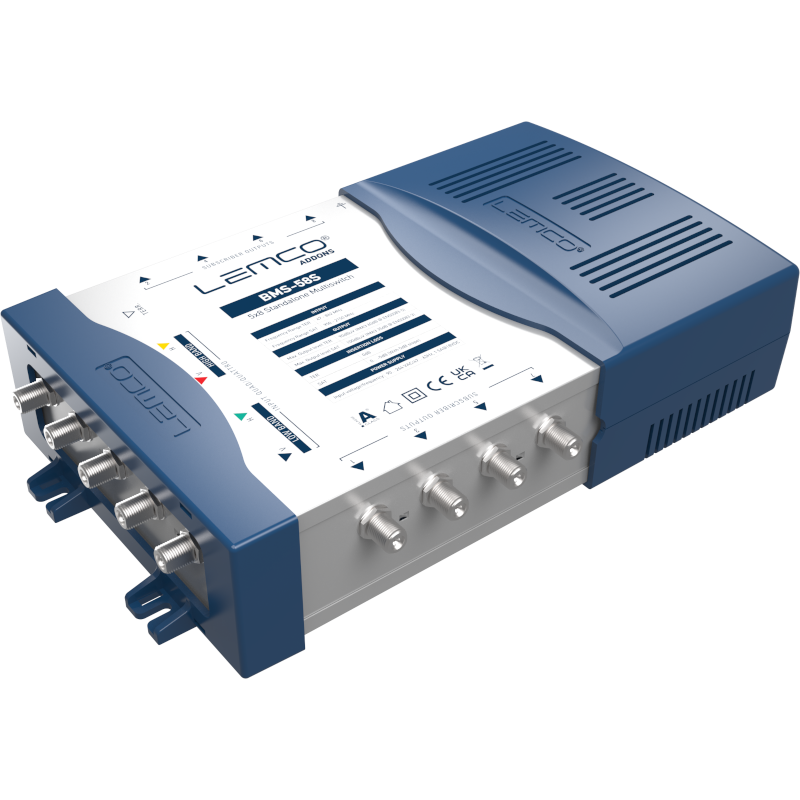

| Trunk inputs (SAT+TER) | 4+1 |
|---|---|
| Frequency Range TER | 47 - 862 MHz |
| Frequency Range SAT | 950 - 2150 MHz |
| Connector | F- female |
| Impedanace | 75Ω |
| Switch commands | 13/18V, 13V/22kHz, 18V/22kHz |
| 22KHz Tone | 22±4 KHz, 0.75±0.25 Vpp |
| LNB supported | Quad/Quattro |
| No of Subscribers | 8 |
|---|---|
| Max. Output level TER | 90dBμV (IMA3 60dB @ EN50083-5) |
| Max. Output level SAT | 100dBμV (IMA3 35dB @ EN50083-3) |
| Connector | F- female |
| Impedance | 75Ω |
| TER | 0dB |
|---|---|
| SAT | 0…-5dB (With 5dB slope) |
| TER to SAT | 30dB |
|---|---|
| SAT to TER | 30dB |
| Cross polarization H/V | 30dB |
| Out-to-Out TER | 26dB |
| Out-to-Out SAT | 30dB |
| Input TER | 10dB |
|---|---|
| Input SAT | 10dB |
| Output TER | 10dB |
| Output SAT | 10dB |
| Input voltage/frequency | 90…264 VAC/47…63Hz, 1.5A@18VDC |
|---|---|
| Internal PSU consumption | 3W max. |
| Max. current to LNB consumption | 1A |
| Max. current from receiver consumption | 50mA |
| Operating temperature | 0 °C to 55 °C |
|---|---|
| Storage temperature | -10 °C to +70 °C |
| Humidity | Up to 90% |
| Dimensions | 280 × 175 × 65 mm |
| Weight | 0.900 Kg |
