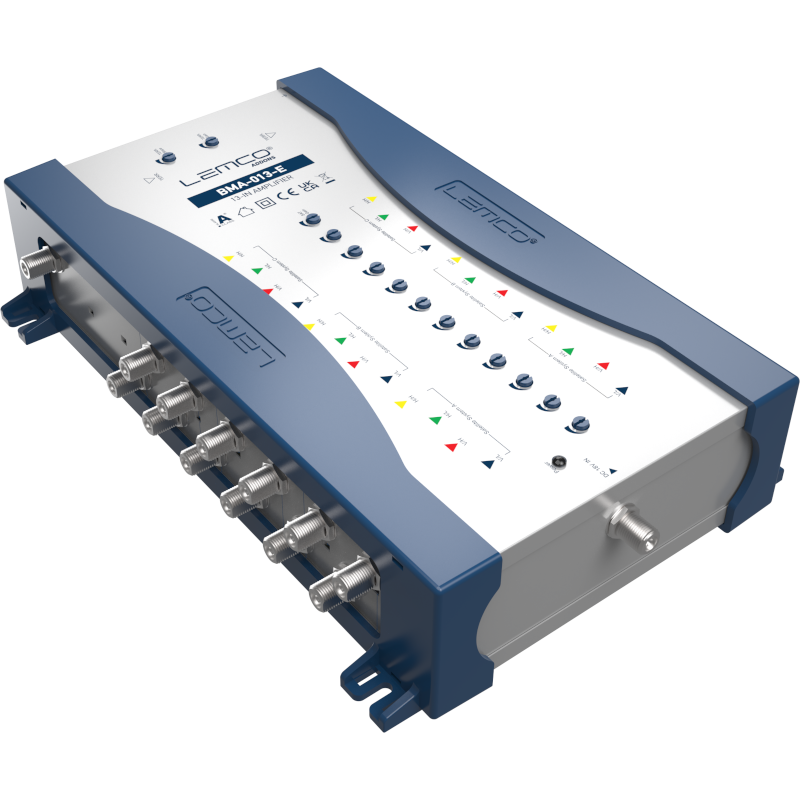

| Trunk inputs (SAT+TER) | 12+1 |
|---|---|
| Frequency Range TER | 47 - 862 MHz |
| Frequency Range SAT | 950 - 2150 MHz |
| Connector | F- female |
| Impedanace | 75Ω |
| Switch commands | 13/18V, 13V/22kHz, 18V/22kHz |
| 22KHz Tone | 22±4 KHz, 0.75±0.25 Vpp |
| LNB supported | Quad/Quattro |
| SAT+TER | 12+1 |
|---|---|
| Gain TER | 15dB |
| Gain SAT | 16…22dB |
| Gain control TER | 0…10dB |
| Gain control SAT | 0…10dB |
| Slope control TER | 0…10dB |
| Slope control SAT | 6dB Fixed |
| Max. Output level TER | 105dBμV (IMA3 60dB @ EN50083-5) |
| Max. Output level SAT | 110dBμV (IMA3 35dB @ EN50083-3) |
| Connector | F- female |
| Impedanace | 75Ω |
| TER-SAT | 32dB |
|---|
| Input TER | 10dB |
|---|---|
| Input SAT | 10dB |
| Output TER | 10dB |
| Output SAT | 10dB |
| Input voltage/frequency | 90…264 VAC/47…63Hz, 1.5A@18VDC |
|---|---|
| Power consumption | 650mA max. @ 18VDC |
| DC to LNB / Max. current to LNB | 1.5A @ 18V |
| Power Indicator | Green LED |
| DC Pass SAT IN/OUT | Yes |
| DC Pass TER IN/OUT | No |
| Operating temperature | 0 °C to 55 °C |
|---|---|
| Storage temperature | -10 °C to +70 °C |
| Humidity | Up to 90% |
| Dimensions | 285 × 180 × 60 mm |
| Weight | 1.170 Kg |
