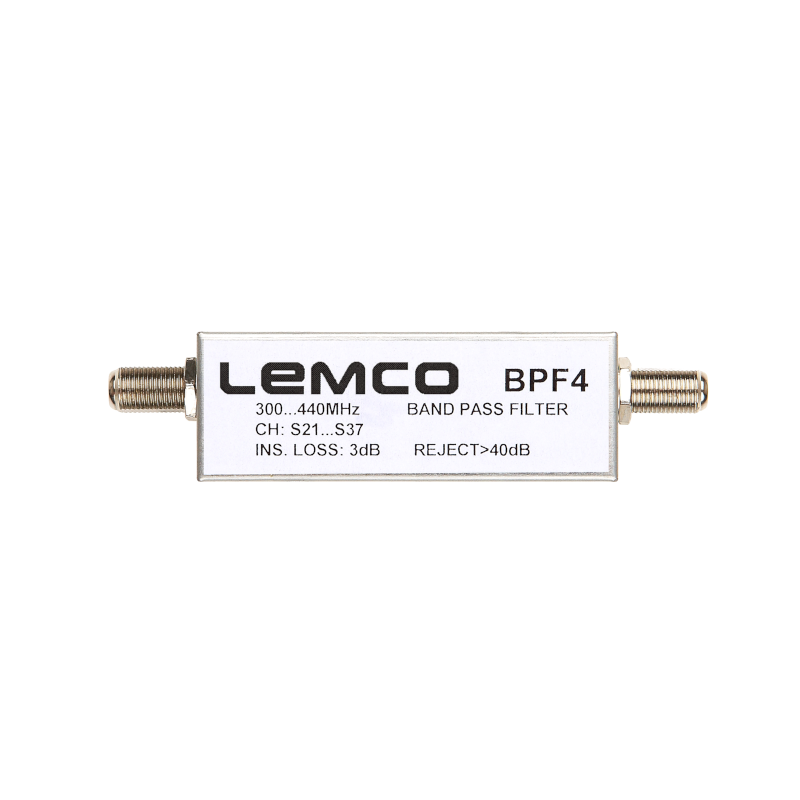

BPF-4

RF filter


Description
The BPF4 (Band Pass Filter) is a filter allowing pass-through to specific frequencies. Ideal for excellent spurious and harmonics rejection (eg. coming from an analog TV modulator) in order to achieve the best result in a CATV installation. The BPF series can be combined with the quad RF PAL modulator - MOD6 in order to achieve a total number of 20 DSB RF PAL channels in an installation with excellent performance.

Specifications

RF Perfomance
Working frequency / CH 300…440 MHz / S21…S41
Insertion loss 3dB
Out of band rejection 60dB
Impedance 75Ω
General
Connector F - female
Dimensions 75 × 25 × 20mm
Weight 0.10 Kg
